1977 PIPER Arrow PA-28R-201 164mph Aircraft

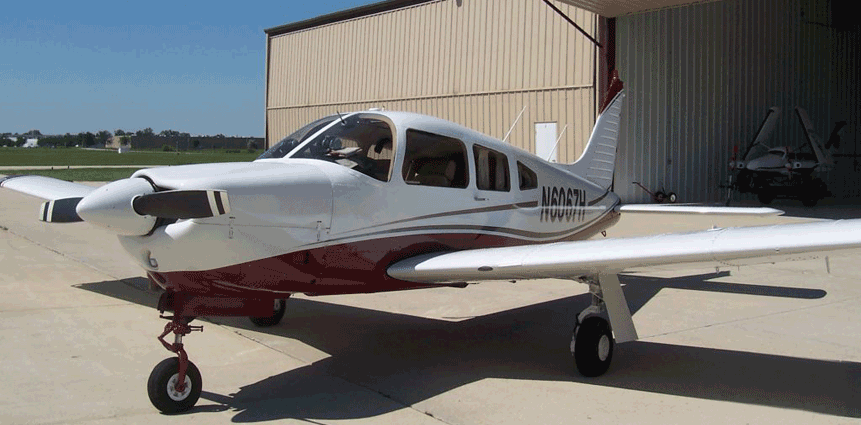

N6067H - Piper Arrow III

Part of the Piper PA28 Cherokee family of aircraft, designed for training and personal use. All-metal, unpressurized, single-engine, piston-powered with low-mounted wings and tricycle landing gear.

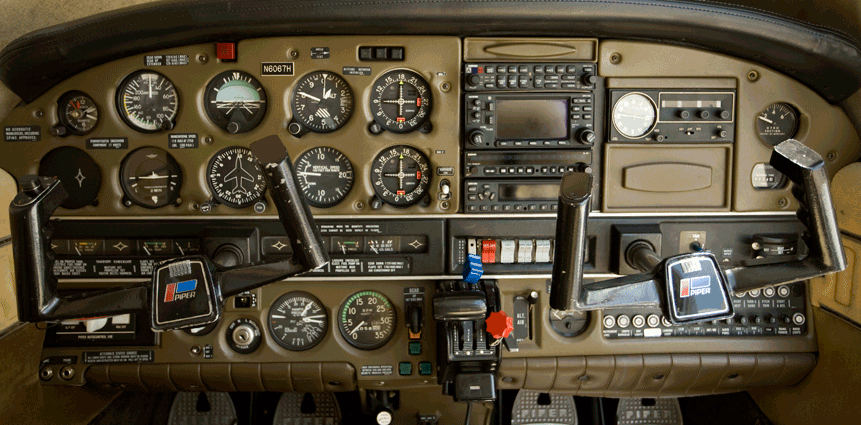

Garmin GNS 430W WAAS and Terrain GPS, Garmin SL30 Nav/Com, Dual ILS, Garmin GMA 340 Audio Panel, Marker Beacons, Garmin GTX330 Transponder/Mode S, TIS Traffic, Stormscope, King KR88 ADF, Autotrol IIIB Two Axis Autopilot, 4 Place Intercom, Aux Music Input, Digital OAT/EGT, Electric Trim, Wing Tip Landing Lights

The following Performance and Weight and Balance numbers are given for informational purposes only. Pilots should always consult the POH when calculating a true Weight and Balance prior to flight.


Gear up, flaps up: 78 knots
Gear down, flaps up: 72 knots
Va: 118/96 knots
Vno: 146 knots

Gear up, flaps up: 90 knots
Gear down, flaps up: 78 knots
Vfe: 103 knots
Vne: 183 knots

Weight and Balance

Gross Weight: 2,750
Max Useful: 999
Empty Weight: 1,751
EWCG: 85.96
Moment: 150541.64
Max useful with FULL fuel (72 gal = 432lbs): 567
